Medical and biomedical

Our MEMS-based pressure transducers deliver reliable accuracy and stability in flow measurement applications. Coupled with our disposable dome, which is easily integrated with your existing line sets, our sensors are designed to meet demanding medical and industrial requirements. We have various housing configurations to accommodate machine mounting needs.

Applications: The SP850 series have been integrated by our customers in medical machines for:

• Haemodialysis and Continuous Renal Replacement Therapy (CRRT)
• Cell separation and processing
• Organ transport
• Eye surgery
• Kidney stone surgery

Benefits: Direct flow measurement - High accuracy and stability - Flexible and easy integration - Durability and reliability

Pressure Range (FSO)	-600 to 700 mmHg generic specification
Max. Overpressure	10000mmHg
Sensitivity (nominal)	5µV/V/mmHg ± 5%
Electrical Excitation	4-8V DC
Input Resistance (min)	1500Ω
Output Resistance (max)	3000Ω
Operating Temperature Range	+10ºC to +50ºC
Storage Temperature Range	-20ºC to +60ºC
Insulation Resistance	≥ 1GΩ
Leakage Current	≤ 1.5µA at 250V, 50Hz
High Voltage Resistance	10000V between saline in dome and transducer leads

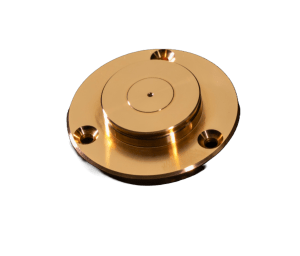

Weight	53 grams (SP856) and 68 grams (SP854)
Strain Relief between cable and membrane housing	20N (static)
	-300 to 300 mmHg	-600 to 700mmHg
Total accuracy at 25°C. Combined Lin(BSL) + rep + hyst	≤ ± 1.2%FSO	≤ ± 2.5%FSO
Non-Linearity at 25°C  (1)	≤ ± 0.5%FSO	≤ ± 1.5%FSO
Repeatability	≤ ± 0.15%FS	≤ ± 0.25%FS
Repeatability (with different domes)	≤ ± 0.50%FSO	≤ ± 0.80%FSO
Mechanical Hysteresis	≤ ±0.5% FSO
Zero Balance	≤ ±50 mmHg
Thermal Zero Shift, TCO (25° to 35°C)	≤ ±0.50 mmHg/°C
Thermal Sensitivity Shift (TCS)	max -0.20%FSO/ºC


*Memscap will supply a component intended for integration by and for the customer`s final product. It will be the customer’s responsibility to integrate the component in their system, perform the necessary testing and obtain any regulatory approvals required for their final product.
